In modern industrial piping systems, reliable and leak-proof connections are essential for maintaining safety and efficiency. One such crucial component is the square flange, widely used for connecting pipes, valves, and equipment where space is limited or where high-pressure performance is required. Square flanges ensure tight sealing and easy maintenance, making them ideal for heavy-duty industrial use.

Understanding Square Flanges

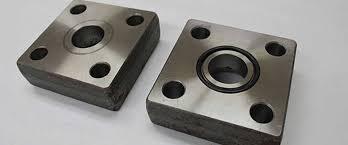

A square flange is a type of mechanical connector with a square-shaped outer profile and a circular inner bore. It provides a compact and rigid joint, typically used in hydraulic systems, oil refineries, chemical plants, and power stations.
Unlike round flanges, square flanges offer better stability in limited spaces and are easier to align during installation.

Manufacturing Standards

Square flanges are primarily designed as per JIS B2291 standards. These flanges are engineered to handle pressures up to 210 kg/cm², depending on material and design.
They are available in different pressure classes and face types such as:

  • Flat Face (FF)

  • Raised Face (RF)

  • Ring Type Joint (RTJ)

Each configuration ensures safe and durable operation under varying conditions.

Materials Used for Square Flanges

Material selection is crucial for ensuring corrosion resistance and long-term strength. Common materials include:

  • Stainless Steel (SS 304, SS 316, SS 321)

  • Carbon Steel (ASTM A105, IS 2062)

  • Duplex & Super Duplex Steel

  • Nickel Alloy, Inconel, and Monel

These materials are chosen based on process temperature, pressure, and chemical exposure.

Key Benefits of Using Square Flanges

  1. Leak-Proof Connections – Ensures tight sealing even under vibration or pressure variation.

  2. Easy Installation & Maintenance – Four-bolt design allows quick assembly and removal.

  3. Space-Saving Design – Ideal for compact piping layouts.

  4. High Strength & Durability – Withstands high-pressure and corrosive environments.

  5. Versatile Applications – Suitable for both fluid and gas transfer systems.

Industrial Applications

Square flanges are used in multiple sectors where reliability is crucial:

  • Hydraulic Systems – To connect high-pressure oil lines

  • Petrochemical & Refinery Plants – For transporting fluids and gases

  • Marine & Offshore Platforms – For corrosion-resistant joints

  • Power Plants & Boilers – For high-temperature applications

  • Chemical & Fertilizer Units – For handling corrosive fluids

Their ability to maintain secure connections in demanding environments makes them a preferred choice across industries.

Maintenance Tips for Square Flanges

To ensure long service life and safe operation:

  • Regularly inspect bolts and gaskets for wear or corrosion.

  • Use compatible sealing materials like PTFE or graphite.

  • Avoid over-tightening bolts to prevent flange deformation.

  • Replace damaged components immediately during shutdowns.

Conclusion



Square flanges are dependable, strong, and efficient solutions for modern industrial piping systems. Their compact design, superior sealing ability, and easy maintenance make them a perfect fit for high-pressure and corrosive applications. Choosing quality square flanges made from durable materials ensures smooth operations and reduced downtime for your plant.
