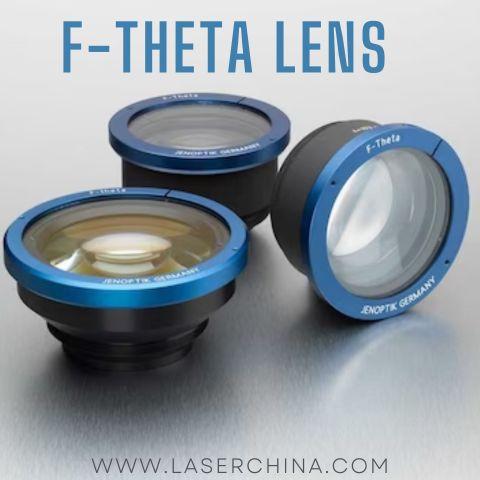

When it comes to modern laser systems, the F-theta lens stands as one of the most crucial components that define accuracy and performance. Whether the process involves laser marking, engraving, or cutting, this specialized lens ensures that the laser beam remains consistent and precise over the entire working field. Its name, derived from its mathematical principle of focusing light in proportion to the tangent of the scan angle (θ), represents innovation in optical design engineered for precision manufacturing.

The F-theta lens works by maintaining a flat field of focus across the target surface. Unlike traditional focusing lenses that produce a curved focal plane, this lens design corrects field curvature and ensures every point within the scan area receives the same focal quality. This precision makes it indispensable for laser marking systems that rely on galvo-scanners, where the laser beam rapidly moves across large surfaces to engrave codes, text, or patterns.

The Optical Design Concept

The defining principle behind the F-theta lens lies in its linear relationship between the laser’s scan angle and the position on the work surface. In simple terms, as the galvanometer mirrors deflect the beam, the focal spot on the working plane moves proportionally — following the formula:
Position = f × θ, where f is the focal length and θ is the scan angle.

This ensures that the beam position remains predictable and distortion-free, even at high scan speeds. The lens is optimized to minimize spherical aberration and distortion, enabling uniform energy distribution over the entire marking field. This consistent performance is critical when working on precision applications such as electronics marking, automotive component engraving, or serial number coding on metals and plastics.

Material Selection and Coating

The optical material and coating of an F-theta lens determine its performance and compatibility with different laser wavelengths. For example:

• Fused Silica F-theta lenses are often used for ultraviolet (UV) and green lasers due to their high transmittance and minimal absorption.

• ZnSe (Zinc Selenide) F-theta lenses are compatible with CO₂ lasers (10.6 µm wavelength), ideal for non-metal materials like wood, acrylic, and leather.

• Fused Silica or Quartz F-theta lenses are the standard choice for fiber and YAG lasers (1064 nm), designed for metal marking and engraving.

Each lens type is coated with anti-reflective layers tailored to specific wavelengths, ensuring maximum energy throughput and reducing reflection losses. Proper coating not only enhances optical performance but also protects the lens from thermal damage during continuous industrial use.

Application Fields of F-theta Lens

The versatility of the F-theta lens makes it essential across multiple industries. It is a critical component in systems that demand precision beam control over wide working areas.

1. Laser Marking Systems
   The most common use of the F-theta lens is in laser marking machines. From product branding to data matrix codes, the lens ensures consistent marking depth and clarity across the entire field.

2. Laser Engraving Machines
   For detailed engraving work—on metals, ceramics, or polymers—the lens delivers uniform line thickness and consistent engraving intensity.

3. PCB Manufacturing
   In printed circuit board processing, the F-theta lens ensures micro-scale precision for drilling and patterning without distortion.

4. Micromachining and Semiconductor Fabrication
   In micro-processing, where accuracy is measured in microns, the F-theta lens allows laser systems to maintain beam focus across small-scale surfaces with exceptional uniformity.

5. Laser Cutting Applications
   For thin material cutting where precision edges are required, the F-theta lens provides clean beam delivery and minimal energy loss.

Focal Length and Working Field Relationship

The choice of focal length in an F-theta lens directly affects the working area and spot size:

• Short focal length lenses produce smaller spots with higher precision but limited working areas.

• Long focal length lenses offer larger marking fields at the expense of spot size and intensity.

Selecting the right balance depends on the application’s requirement — for example, detailed logo engraving may need a shorter focal length, while large-area marking benefits from a longer one. Manufacturers typically offer focal lengths ranging from 100 mm to 420 mm or more, allowing engineers to select the most suitable configuration for their laser system.

Engineering Tolerances and Accuracy

High-quality F-theta lenses are manufactured under strict optical tolerances to maintain flatness, centration, and transmission efficiency. Precision alignment during production ensures that beam distortion remains under 0.5%, even at the edge of the marking field. This accuracy ensures that the laser path remains linear and energy distribution remains consistent — crucial for high-speed production lines where thousands of components are marked each hour.

Manufacturers often verify the quality through interferometric testing and field distortion mapping. These processes guarantee that each lens performs to its designed parameters, ensuring reliability and long-term stability in industrial environments.

Installation and Maintenance

Proper installation of an F-theta lens is critical for maintaining optimal laser performance. The lens must be aligned perfectly perpendicular to the laser beam and centered within the optical path. Misalignment can lead to image distortion, reduced marking precision, or inconsistent energy delivery.

Routine maintenance involves:

• Cleaning the optical surfaces with non-abrasive lens tissues and isopropyl alcohol.

• Preventing contamination from dust, smoke, or oil vapors, which can cause localized heating.

• Regularly checking lens mounts and seals to ensure they remain secure and vibration-free.

Proper handling significantly extends the lens’s operational life and maintains stable optical performance.

Customization and OEM Integration

Leading optical manufacturers offer customized F-theta lens solutions designed for specific industrial needs. These can include:

• Custom focal lengths to match unique working fields.

• Special coatings for multi-wavelength compatibility.

• Compact or lightweight housings for integration into portable or handheld laser systems.

OEM laser machine builders often collaborate with optical engineers to design proprietary lenses optimized for their specific galvo systems and beam parameters. This level of customization ensures perfect synchronization between optical and mechanical components.

Technological Advancements in F-theta Lens Manufacturing

Modern F-theta lens production incorporates advanced simulation tools and precision polishing technologies. Ray-tracing software helps optical engineers predict and correct distortions before physical production. Meanwhile, CNC polishing and ion-beam figuring techniques ensure that every optical surface achieves nanometer-level smoothness.

With the ongoing development of ultrafast lasers, the demand for higher damage threshold optics continues to rise. This has led to the creation of low-absorption F-theta lenses, capable of operating under high power densities without degradation. Additionally, hybrid lens designs combining refractive and diffractive elements are becoming more common, providing even better field uniformity and wavelength flexibility.

Industrial Adoption and Quality Assurance

The F-theta lens has become a standard in modern laser marking systems used by global manufacturers in sectors such as automotive, aerospace, electronics, and medical devices. Its ability to deliver precision, stability, and scalability makes it indispensable for automation environments where consistency and speed are critical.

Before integration, each lens undergoes rigorous quality control tests for transmittance, flat-field accuracy, and coating adhesion. This ensures the lens can endure high optical loads without performance degradation over time. Reliable optical performance translates directly into higher production quality and reduced maintenance costs.

Final Thoughts

The F-theta lens is more than just an optical component—it’s the foundation of accuracy in laser processing systems. By maintaining a flat field of focus and consistent energy distribution, it enables precise and repeatable results across diverse materials and applications. From industrial marking and engraving to micromachining, the F-theta lens continues to define the optical standard for modern manufacturing technologies. Its role in ensuring reliability, efficiency, and accuracy places it at the core of every high-performance laser system operating today.
